BP

铝电解电容器 ALUMINUM ELECTROLYTIC CAPACITOR

HVL electrolytic capacitors offers great usability for budget and medium range crossover application. A great choice for bass section on crossovers.
Small size and price friendly, this capacitor is great for simple constructions and where spacing on crossover is a factor.
B10 series have foils with surfaces which are roughened by a special etching process thus enlarging the surface.
B05 series are made of smooth and thus low loss foils. This has a positive effect on the sound characteristics. Music is reproduced in more details and nuances.

HIGHLIGHTS
●Aluminum electrolytic film (metal oxide layer)
●Small size. More capacities
●RoHS-compliant. lead-free
●REACH-compliant

TECHNICAL INFORMATION
● Non-polarized capacitor 无极性
● Voltage rating: 100VDC 160VDC
● Capacitance tolerance: +/- 5% 10% 15% centered on
nominal value
● Temperature range: -40℃ to +85℃
● Dissipation factor: ≤ 10% @1KHZ
● Leakage current: < 0.003 CRUR (μA) After 120S operation

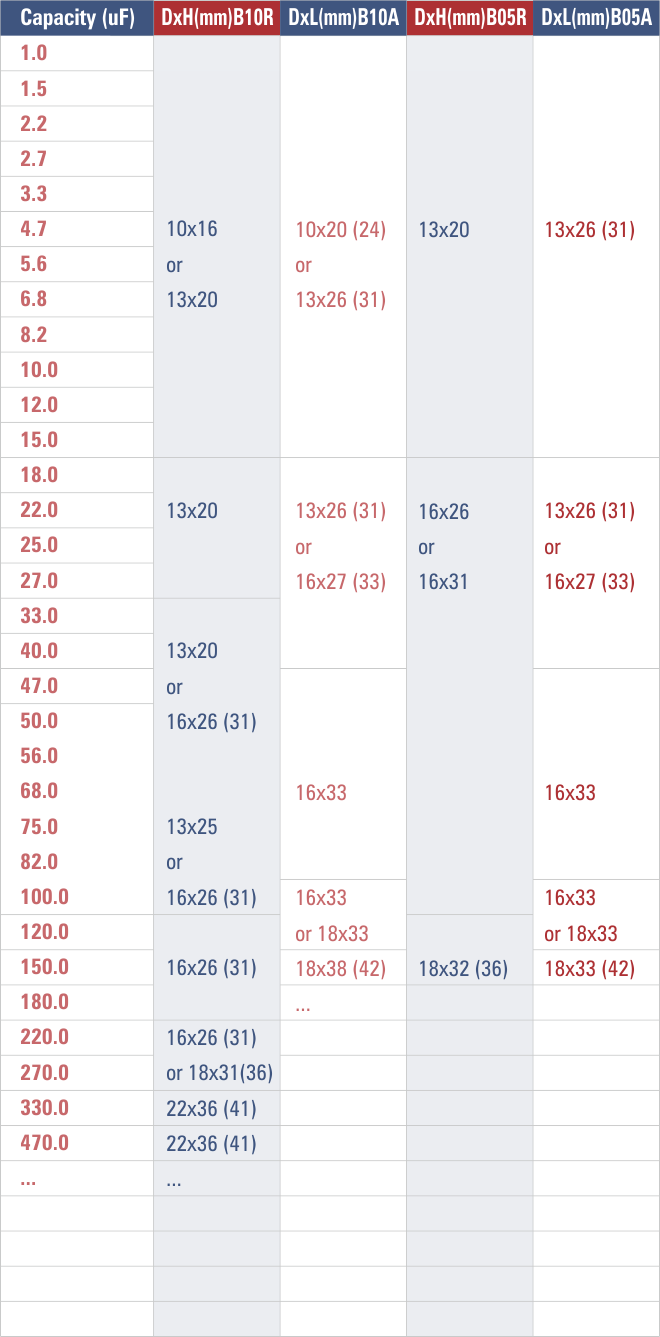

RATINGS AND DIMENSIONS:
