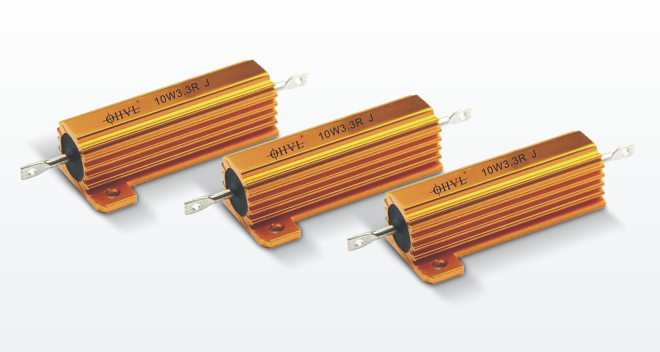

RX24

电阻 RESISTORS

HIGHLIGHTS
●Aluminum chassis, easy to carry out the heat and easy to extra heat-sink
●Smaller package but high power handling
●Flexible leader
●TwoΦ4 mounting holes

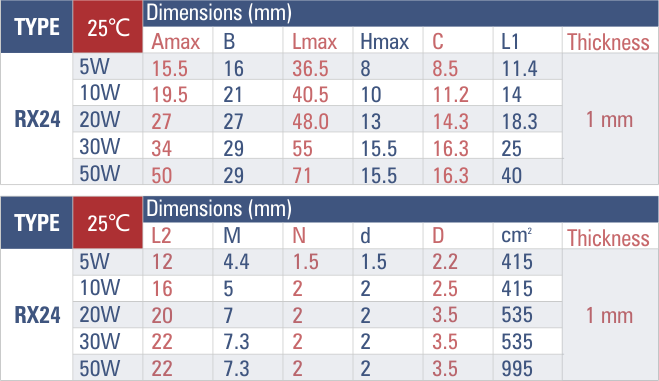

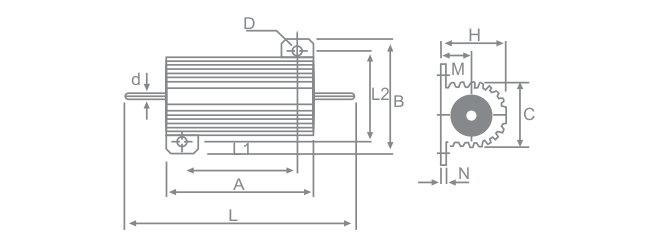

CONSTRUCTION

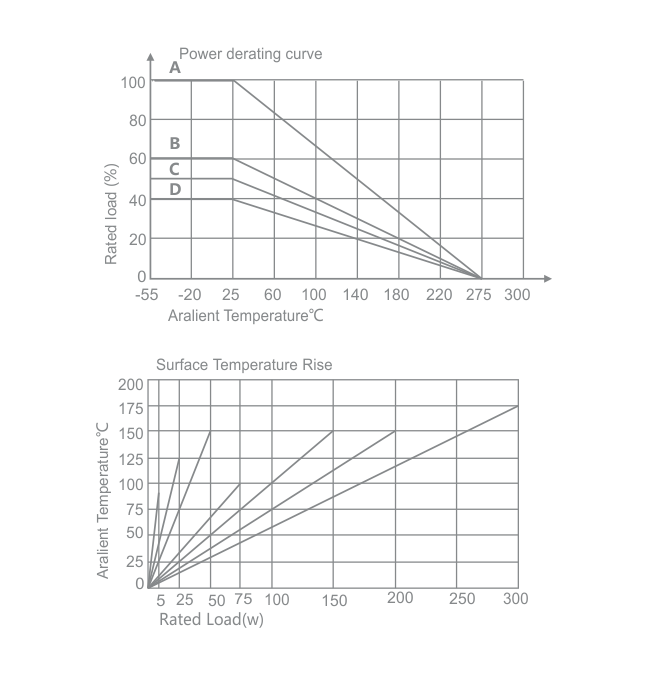

CURVE DIAGRAM

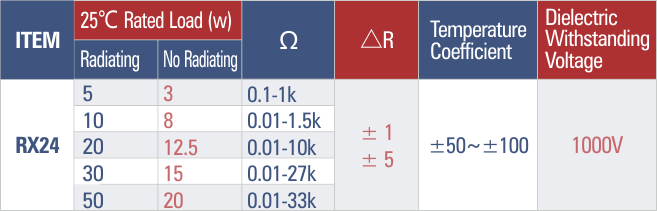

RATING

POWER CHARACTERISTIC

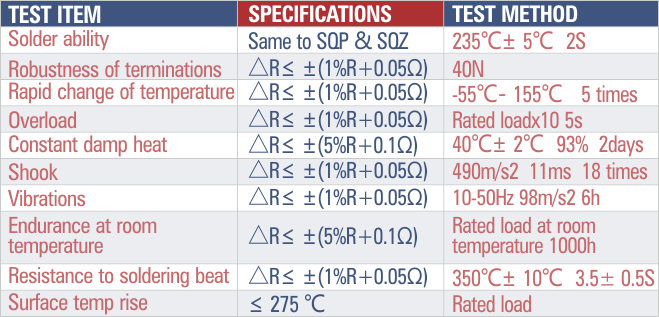

PERFORMANCE
